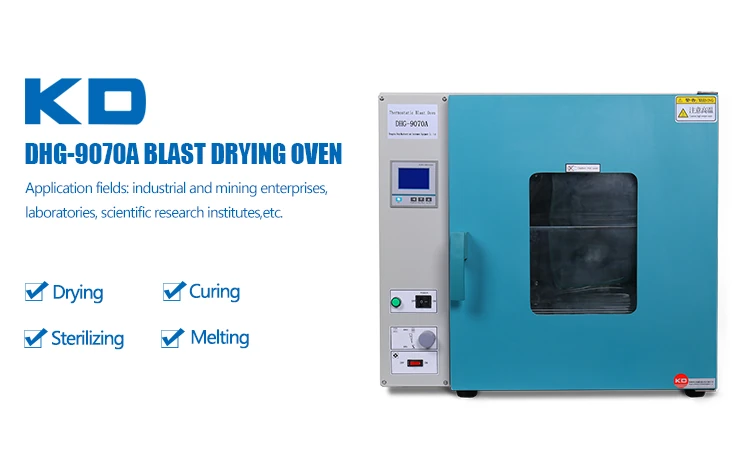

DHG-9070A blast drying oven

DHG-9070A blast drying oven

ZZKD is a Chinese manufacturer of electric blast drying ovens. Our DHG-9070A blast drying is of good quality and long service life.

Advantage:

DHG-9070A blast drying oven is widely used in industries such as industrial and mining enterprises, medical and health, medicine, biology, agriculture, chemical industry, environmental protection, scientific research institutions, etc. It can perform baking, drying, dissolving, disinfection and other reactions on materials.

Features:

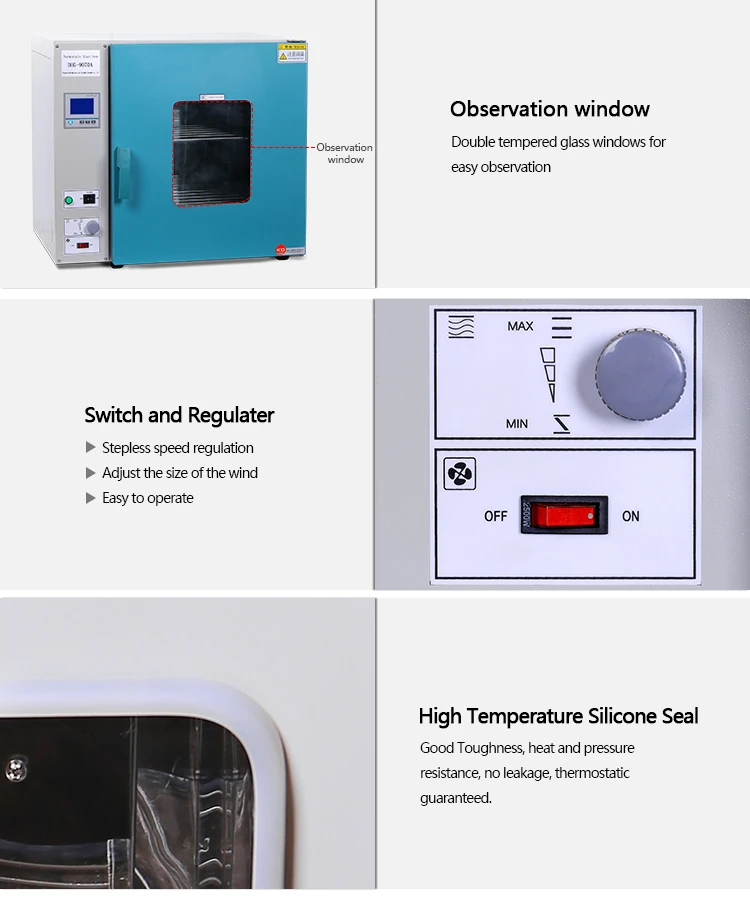

1. The reaction of materials can be observed intuitively.

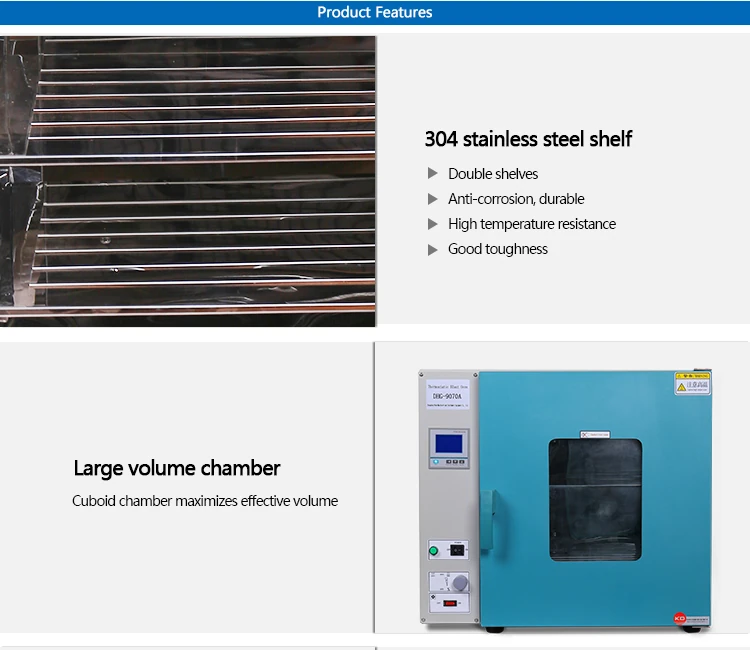

2. Working room with stainless steel mirror surface, the baffle is removable, easy to clean.

3. Accurate and reliable temperature control accuracy.

4. New type of silicone gasket, long service life under high temperature, easy to replace.

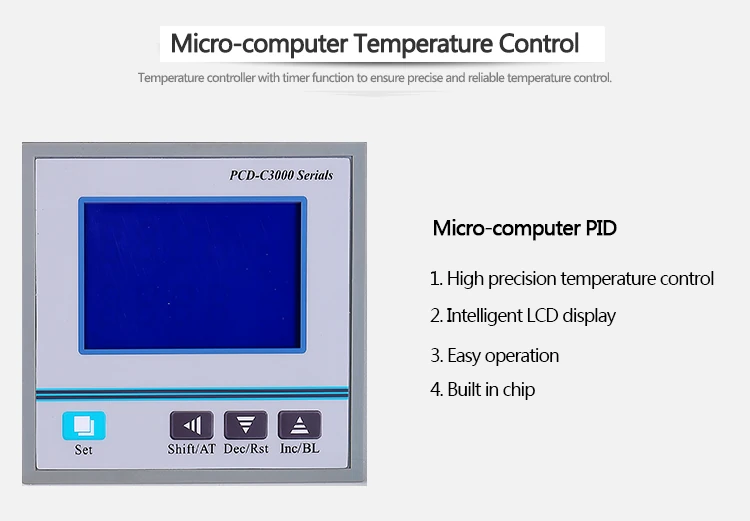

5. With temperature calibration, timing and alarm functions.

Electric blast drying oven

electric heating  blast drying oven

Electric blast drying oven

electric heating  blast drying oven made in china

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


Grouped equipment:

Diaphragm Vacuum Pump

Rotary vane vacuum pump


FAQ:

1. What are the advantages of the blast drying oven?

Electric heating is used to carry out the blast circulation drying experiment. The hot air is blown out by the circulation fan to form convection in the drying box, thereby ensuring the temperature balance in the drying box, so that the material can be dried quickly. It is mostly used in chemical industry, medicine, casting Automobile, food, machinery and other industries. Fast heating speed and uniform drying.



2. What are the common drying ovens?

Vacuum drying box; electric blast drying box; freeze drying box; far infrared drying box; vacuum microwave drying box.



3. What are the basic structures of the blast drying oven?

Heat source, fan, air duct and temperature control system.



4. What is the principle of the blast drying oven?

The hot air is blown out by the circulating fan to ensure the temperature balance in the drying box.

Model

DHG-9070A

Power Supply

220V/50HZ

Shell Material

Spray-paint Anti-corrosion

Liner Material

304 Stainless Steel

Temp. Range

RT+10~250°C

Temp. Stability

±1.0°C

Temp. Analysis

0.1°C

Input Power (W)

1100

Chamber Capacity (L)

72

Inner Dimension (W*D*H,mm)

400*400*450

Overall Dimension (W*D*H,mm)

680*690*630

Shelves (Pcs)

2

Time Range

1~9999 min

Optional Configuration

Explosion-proof
