DLSB-30/30 Cooling Chiller

DLSB-30/30 Cooling Chiller

DLSB-30 series low temperature cooling liquid circulating pump has cheap price and high quality. Our low temperature cooling liquid circulating pump has DLSB-30/30, DLSB-30/80 and many other models.

Advantage:

The low temperature cooling liquid circulating pump can provide cryogenic liquid for double-layer glass reactors and other equipment. It can also be combined with rotary evaporators, vacuum freeze drying ovens, circulating water vacuum pumps, magnetic stirrers and other instruments to perform multi-functional chemical reactions at low temperatures and Drug storage.


Features:

1. Using cryogenic liquid circulating compression equipment, reliable quality.

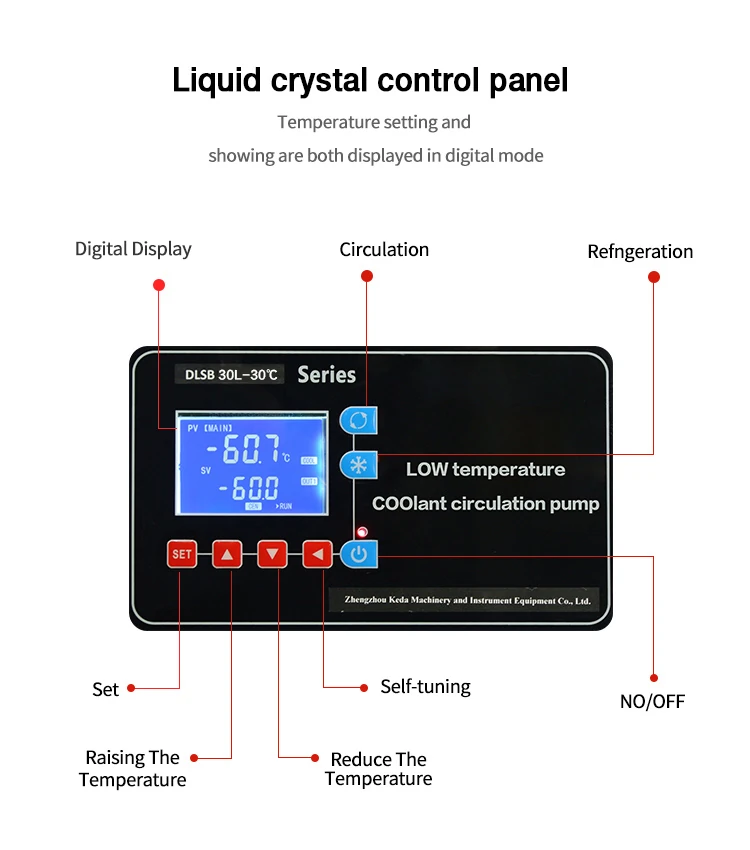

2. Digital setting and temperature display are clear and clear.

3. Large cooling capacity, fast speed and high working efficiency.

4. In the case of water shortage and low water temperature, it can effectively protect the equipment.

5. It can be used in combination with rotary evaporator, vacuum freeze drying oven, and multi-purpose circulating water vacuum pump.

DLSB-30/80

DLSB-30/30

DLSB-30/80

DLSB-30/30

low temperature cooling liquid circulating pump

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


FAQ:

1. What is the role of low temperature cooling liquid circulating pump?

Provide cryogenic liquid, cryogenic water bath.



2. What are the models of your low temperature cooling liquid circulating pump?

DLSB-5-10, DLSB-5-30, DLSB-10-10, DLSB-10-30, DLSB-20-30, DLSB-20-40, DLSB-30-30, DLSB-30-40, DLSB- 50-30, DLSB-50-60, DLSB-80-40, DLSB-100-120.



3. What is the working principle of low temperature cooling liquid circulating pump?

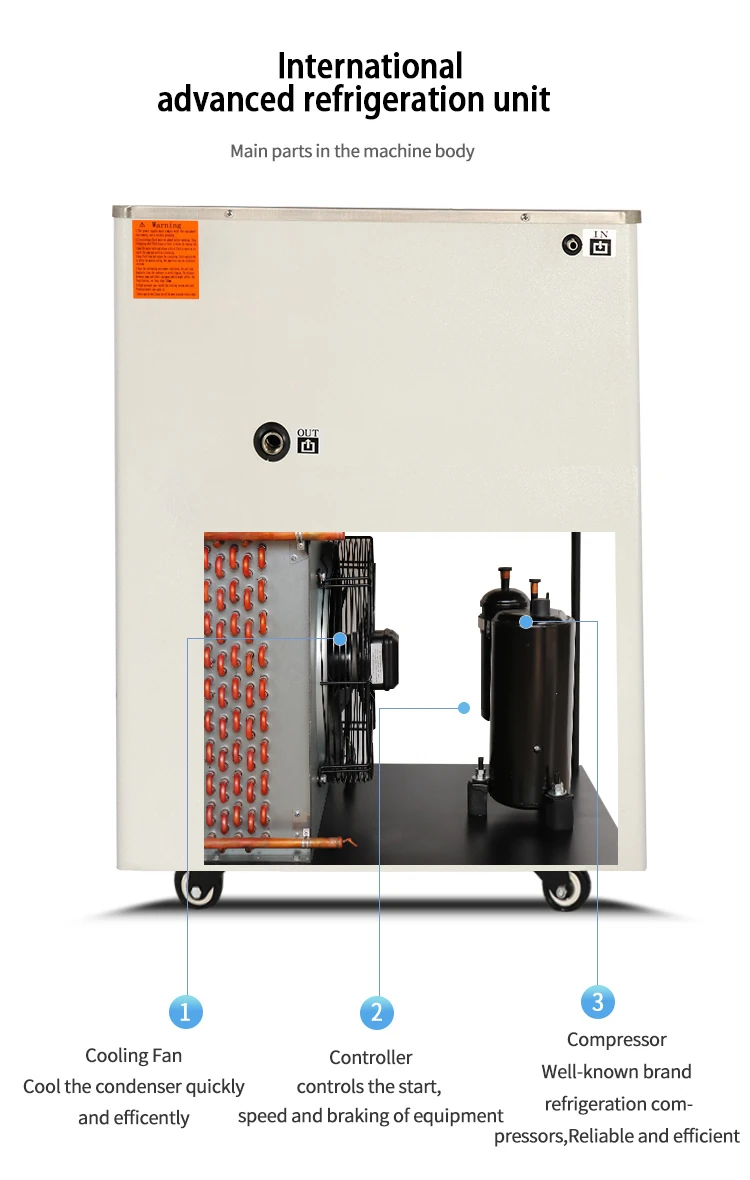

Cryogenic coolant circulation pump is a kind of coolant equipment that can provide constant temperature, constant flow and constant pressure. Its working principle is to first inject a certain amount of liquid into the water tank in the machine, cool the liquid through the refrigeration system, and then send the low-temperature coolant to the equipment to be cooled by the water pump. After the low-temperature coolant takes away the heat, the temperature will rise and Return to the water tank to achieve cooling.

Model

DLSB-30/30

Volume(L)

39.3

No Load Min. Temp. (℃)

-30

Environment Humidity(%)

≤70

Power Supply(Single phase)(V/HZ)

220/50

Temp. Precision(℃)

±2

Cooling Capacity(W)

10℃

2722

0℃

2178

-10℃

1452

-20℃

907

-30℃

363

Total Power(W)

1950

Total Current(A)

9.2

Refrigerant

R404A

Circulating Pump

Power(W)

100

Flow(L/min)

20

Lift(m)

6

Open Size(mm)

310×310

Liquid tank(mm)

340×340×340

Total Demension(mm)

660×515×985

Weight(Kg)

89

Fuse

-
