DLSB-50/30 cooling chiller

DLSB-50/30 cooling chiller

ZZKD is a professional manufacturer of low temperature coolant circulation pump equipment. DLSB-50/30low temperature coolant circulation pump can be combined with rotary evaporator, vacuum freeze-drying box, and multi-purpose circulating water vacuum pump.

Advantage:

DLSB series low temperature coolant circulation pump, also called cooling chiller, low temperature cooling liquid circulating pump, Cryogenic circulation pump, etc. It is mostly used for chemical reactions and drug storage at low temperatures.


Features:

1. Sufficient inventory and fast delivery.

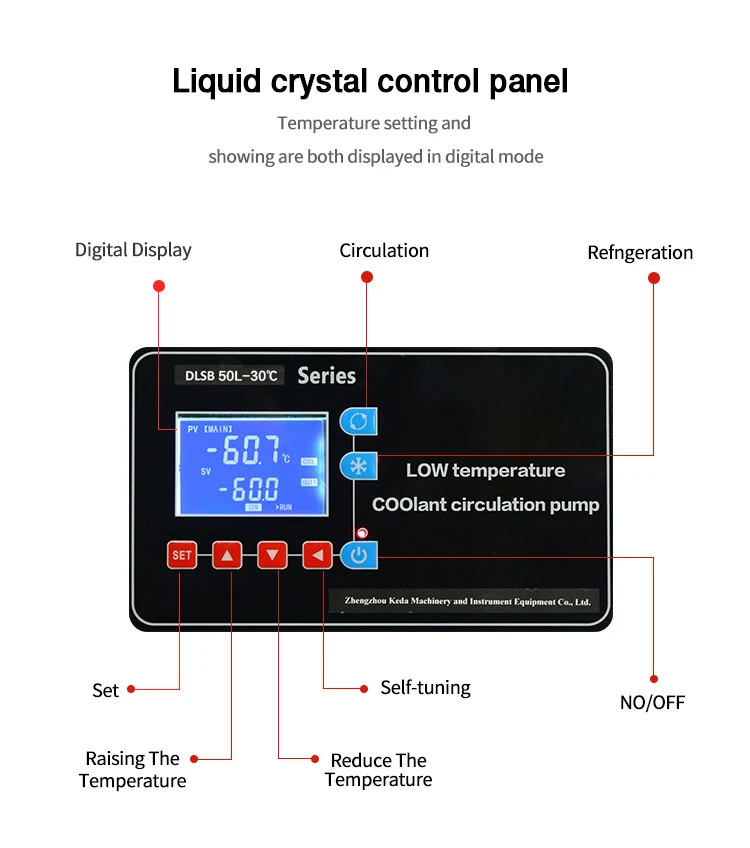

2. Microcomputer temperature control, simple operation.

3. Support OEM, appearance, panel, capacity and temperature can be customized.

4. Ethanol can be used as a small capacity cooling medium.

5. Explosion-proof models are available.

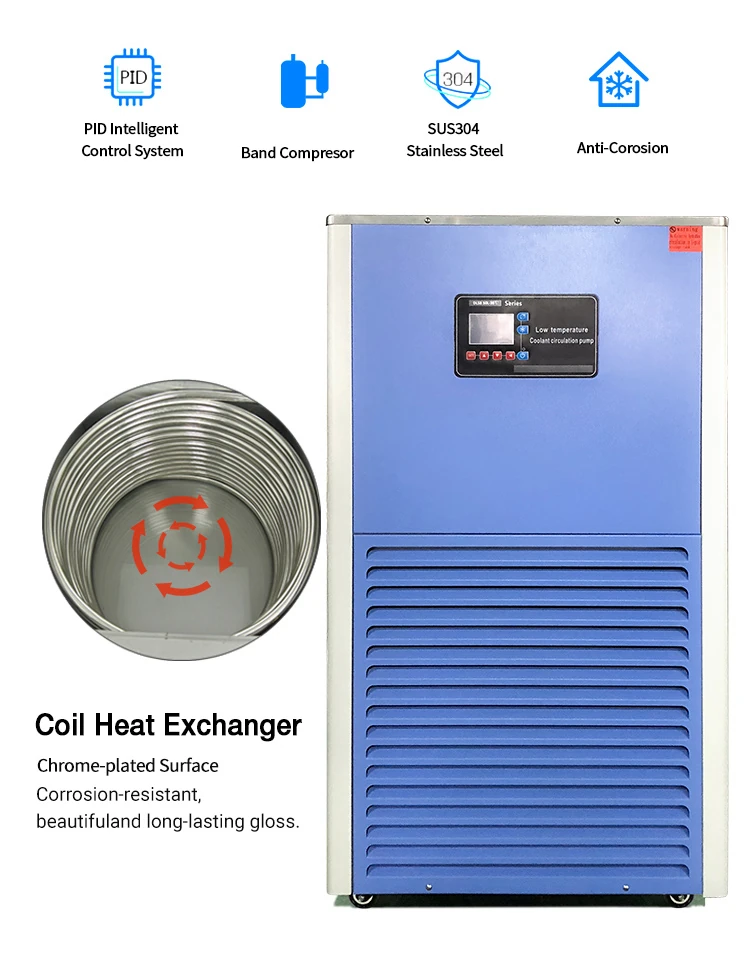

DLSB-50/30 chiller cooling system

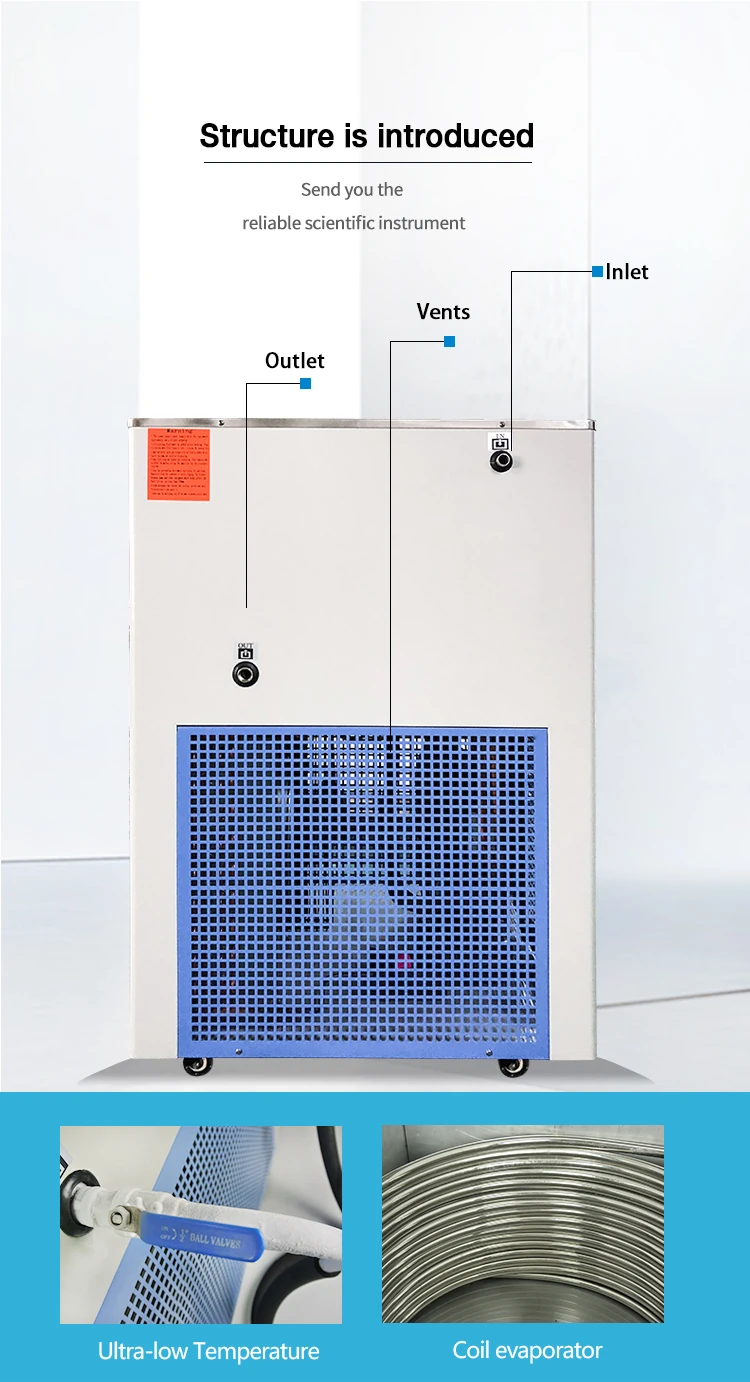

DLSB-50/40 chiller cooling

DLSB-50/30

DLSB-50/40

low temperature coolant circulation pump

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


FAQ:

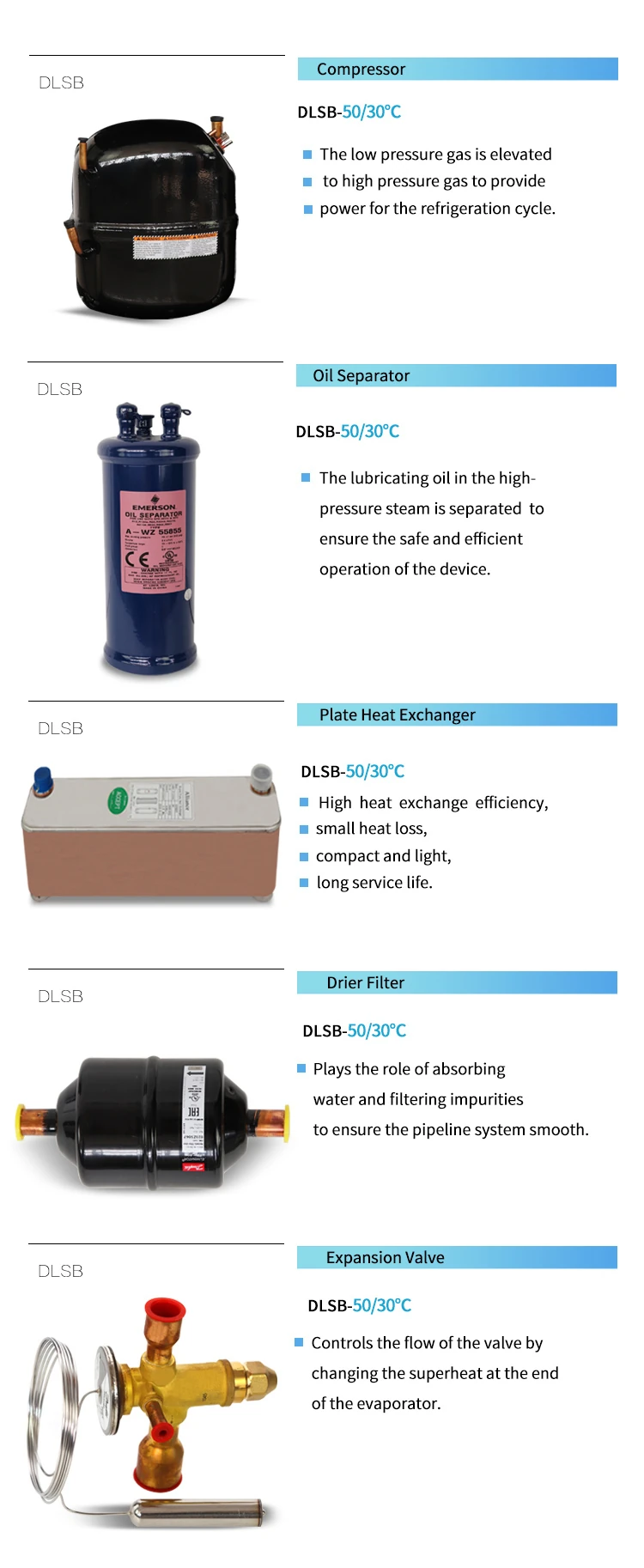

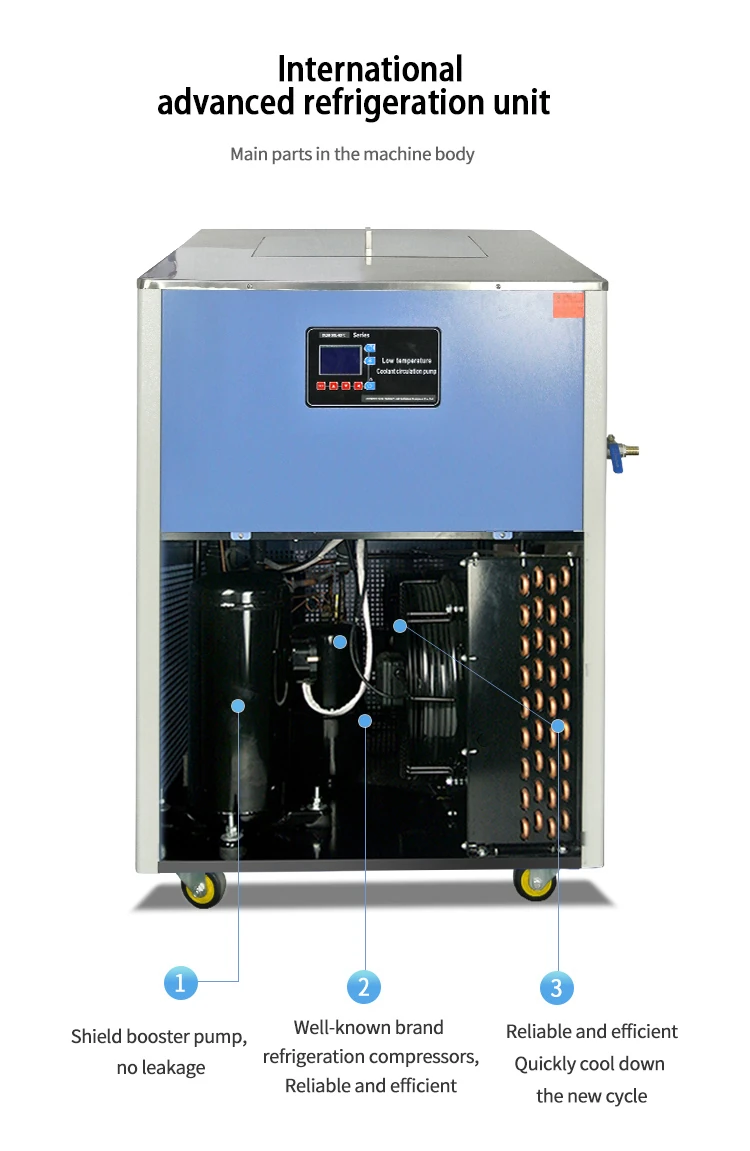

1. What are the components of the low temperature coolant circulation pump system?

Compressor, condenser, filter drier, throttle valve, evaporator, refrigerant.



2. What is the function of the electrical automatic control system of low temperature coolant circulation pump?

The electrical appliance automatic control system includes a power supply part (main circuit) and an automatic control part (control circuit). The main circuit part supplies power to the compressor, fan, water pump, etc. through the contactor. The control circuit part includes thermostat, pressure protection, time delay, relay, overload protection, etc., which can be combined with each other to automatically start and stop and protect according to the water temperature.



3. What is the main purpose of low temperature coolant circulation pump?

The cryogenic liquid circulation equipment adopting the compression refrigeration method can be directly connected to the cooling test tube, reaction bottle, etc. for chemical reactions at low temperatures, and for low-temperature storage of chemicals and biological products. It can also be combined with a rotary evaporator, a vacuum freeze drying box, and a circulating water vacuum pump And other supporting use.


Model

DLSB-50/30

Volume(L)

59.31

No Load Min. Temp. (℃)

-30

Environment Humidity(%)

≤70

Power Supply(Single phase)(V/HZ)

380/50

Temp. Precision(℃)

±2

Cooling Capacity(W)

10℃

5475

0℃

4380

-10℃

3285

-20℃

1190

-30℃

1095

Total Power(W)

3850

Total Current(A)

5.4

Refrigerant

R404A

Circulating Pump

Power(W)

100

Flow(L/min)

25

Lift(m)

7

Open Size(mm)

360×360

Liquid tank(mm)

390×390×390

Total Demension(mm)

760×615×1130

Weight(Kg)

97

Fuse

-
