KDM-060 molecular distillation

KDM-060 molecular distillation

Our molecular distillation system has the lowest price and the best quality. The maximum vacuum of molecular distillation equipment can reach 5Pa or 0.1Pa.

Advantage:

Molecular distillation is a special liquid-liquid separation technology, which is different from traditional distillation which relies on boiling point difference. This is a process of distilling and purifying heat-sensitive substances or high-boiling substances by using the difference in the free path of motion of different substances under high vacuum. Mainly used in the fields of chemistry, medicine, petrochemical, perfume, plastics and oil.

Features:

1. The maximum temperature of the system can reach 300℃, which can realize precise temperature control.

2. Safe and reliable operation, with self-cooling fan, can work continuously for a long time.

3. The evaporation efficiency is very high, which can reduce the retention time and has the smallest time delay.

4. The main body of the molecular distillation system is made of high borosilicate glass, and the operation process of the whole reaction can be well observed.

5. Non-toxic, harmless, non-polluting, and non-residue, pure and safe products can be obtained.

6. There is no boiling bubbling phenomenon.

molecular distillation equipment

molecular distillation equipment machine

molecular distillation equipment price

molecular distillation system

After sale:

Free maintenance for life

Technical engineers can receive overseas training

Remote technical consultation

Video guide installation

Free replacement of some accessories


Grouped equipment:

Rotary vane water vacuum pump

Circulating water vacuum pump

Low temperature coolant circulation pump

Circulating water/oil bath

FAQ:

1. What is the working principle of molecular distillation?

Molecular distillation is a special liquid-liquid separation technology. It is different from the traditional distillation which relies on boiling point difference to separate, but relies on the difference of the mean free path of molecular motion of different substances.



2. What systems consist of molecular distillation?

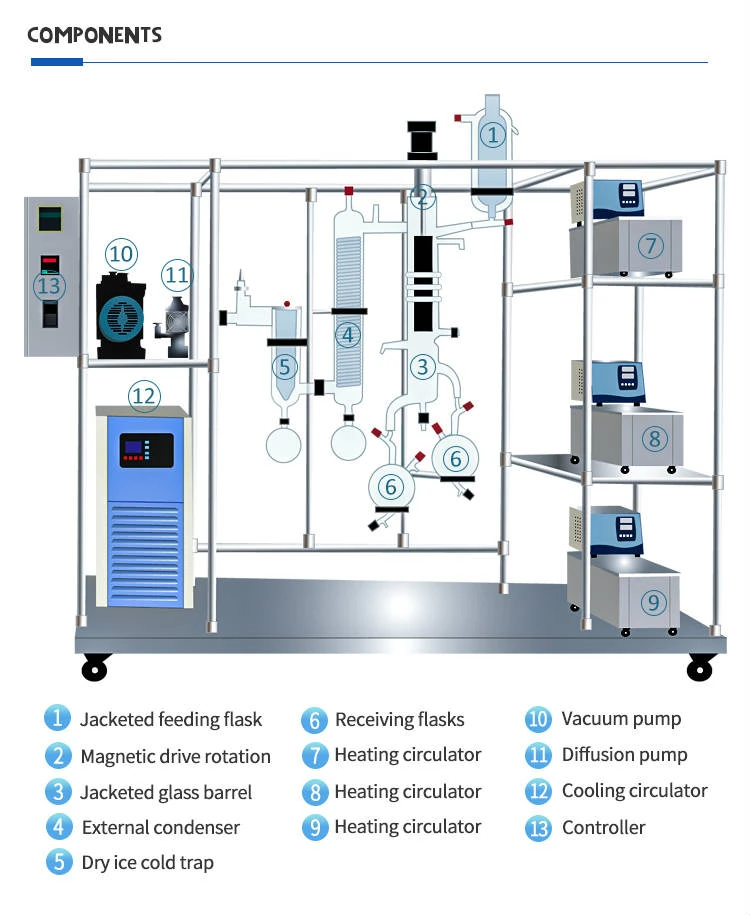

Molecular evaporator, degassing system, feeding system, heating system, cooling vacuum system and control system.



3. What is the maximum speed of molecular distillation?

50-350rpm.


Model

KMD-060

KMD-080

KMD-100

KMD-150

KMD-200

Effective evaporation area (m2)

0.06

0.1

0.15

0.24

0.35

Barrel diameter(mm)

60

80

100

150

200

Feeding funnel volume

1L

1.5L

2L

2L

5L

Feed rate (g/h)

250-500

500-750

750-1500

1500-3000

3000-5000

Motor power (W)

90

120

120

120

200

Maximum speed (rpm)

0-500

Distillate receiving flask

1L

1L

2L

3L

5L

Recicle receiving flask

1L

1L

2L

3L

5L

Operation temperature

Up to 200



Please leave your contact information, we will arrange the business staff to contact you as soon as we see the message.
